Table Layouts for Table Tennis Clubs

 All pages in this section

Discover the ideal table layout for different sized clubs

 By Martin Hughes
 Owner and Editor

So you've started a new table tennis club and now you need to know how to set out the tables.

But which table layout is best?

Does it matter how the tables are set out?

What are the ideal layouts for different sized clubs?

Let's find out...

Ideal table layout by courtesy of the ITTF


^ Top of page ^


TABLE TENNIS EXPERT
REVEALS HIS SECRETS

Click Here For Details



Get my downloadable books here

Playing conditions

Once you have a venue for your club you'll need to consider the...

  • Lighting
  • Flooring
  • Wall colours
  • Heating (or air conditioning) and
  • Table layout

So let's take a look at some ideal table layouts for different sized clubs.

Some clubs may not be able to provide more than one table, so the table layout will not be an issue for them.

But what if you do have more space available - what table layout should you use?

Well, there are an infinite number of ways that you can arrange the tables inside your club but the starting point is to determine what size the playing areas should be.

The recommended size of an individual court for one table tennis table varies according to the standard of competition being played.

(I've set out the various dimensions for table tennis room sizes here. You'll also find details about recommended lighting levels, wall colours, flooring and room temperatures too).

However, 10m x 5m (33 feet x 17 feet) is a good standard court size to use for a club. Although a smaller playing area could be used, it would not be ideal for players who are more advanced than beginners.

TABLE TENNIS EXPERT
REVEALS HIS SECRETS

Click Here For Details



Get my downloadable books here

^ Top of page ^


Basic facilities

If you're starting a table tennis club and you only have very basic facilities - for example if you're in a developing country or in a deprived area - you can still get started.

All you need to do is...

  • Ensure that you have at least two people who want to play regularly
  • Provide at least one table tennis table and net. (Alternatively, you could use any flat surface and use books or something similar for a net)
  • Provide at least two table tennis rackets and balls

Then just play table tennis and enjoy it.

You can make up your own rules or follow the official rules.

You should never let a lack of facilities stop you from playing this fantastic sport.


^ Top of page ^


Ideal table layouts

Most clubs will be able to have more than one table, so let's take a look at some ideal layouts for clubs that can accommodate more than one table.

Whatever the size of your club and however many tables you have, the ideal layout is for the tables to be side by side because this will help to eliminate unnecessary background distractions.

The size of an individual court for one table tennis table varies according to the standard of competition being played.

However, a good standard court size to use for a club is 10m x 5m (33 feet x 17 feet). Although a smaller playing area could be used, it would not be ideal for players who are more advanced than beginners.


^ Top of page ^


4 table layout

A small club would typically have four tables.

So what size of venue will you need to accommodate four tables?

Well, to have enough space for four courts at 10m x 5m (33ft x 17ft) you'll need a minimum area of approximately 20m x 12m (66ft x 40ft).

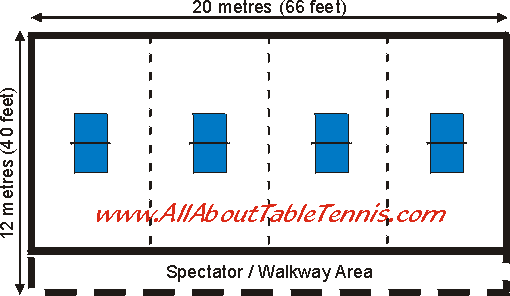

Here's a typical layout for a four table venue...

A typical layout for a four table venue

Barriers should be placed between the courts to limit the number of balls straying out of each court. Also, the clear height required over the playing area is 3 metres (10 feet).

You'll also require a 2 metre (7 feet) wide area for use by spectators and as a walkway for the players so that they can access all the tables without walking through the playing area.

In addition, you may also need to provide additional areas for changing facilities, toilet facilities, refreshment facilities and seating.


^ Top of page ^


8 or 9 table layout

If you decide that you want to start a larger club, then the number of tables you can have will only be limited by the size of the venue.

Here's a typical layout for an eight or nine table venue...

A typical layout for an eight or nine table venue

Each court should measure approximately 10m x 5m (33ft x 17ft) and the clear height required over the playing area is 3 metres (10 feet). Barriers should be placed between the courts to limit the number of balls straying out of each court.

You'll also require an approximately 2 metre (7 feet) wide area along the whole length and 1 metre (3 feet) wide area between the groups of tables for use by spectators and as a walkway for the players so that they can access all the tables without walking through the playing area.

The area shown above for the ninth table could be used for the event organisers when a competition is being held, or just as a regular court at other times.

In addition, you may also need to provide additional areas for changing facilities, toilet facilities, refreshment facilities and seating.


^ Top of page ^


10 table / tournament layout

If you have a larger venue you can allocate more room to each court and this will be better for more advanced players and/or for running a tournament or other competition.

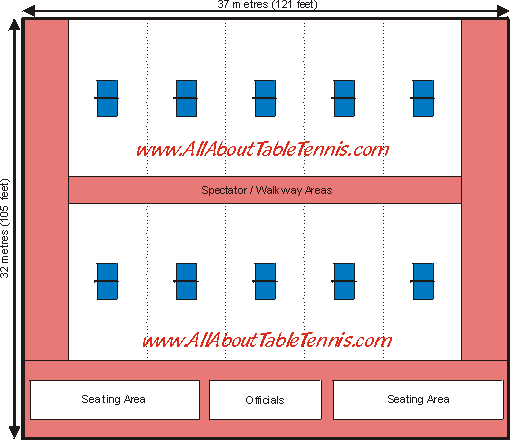

Here's a typical layout for a ten table venue / tournament layout...

A typical layout for a 10 table venue



As this could be used for a competition / tournament, each court will be slightly larger than the previous examples and should measure approximately 12m x 6m (39ft x 20ft).

The clear height required over the playing area will be 4 metres (13 feet) and barriers should be placed between the courts to limit the number of balls straying out of each court.

You'll also require an approximately 3.5 metre (11 feet) wide area along the whole length and a 6 metre (20 feet) wide area for use by spectators and officials.

In addition, you may also need to provide additional areas for changing facilities, toilet facilities, refreshment facilities and seating.


^ Top of page ^


Larger venue

If you are fortunate enough to have a very large venue, the possibilities are endless.

For example, in Europe (Schwechat, Austria) the 2003 World Champion has started his own fantastic table tennis academy - The Werner Schlager Academy - and they have...

  • 50 tables
  • Video Analysis
  • Table tennis robots
  • Fitness area
  • Massage area
  • Relaxing area
  • Restaurant
  • International top trainer
  • Condition trainer
  • Medical care
  • Psychologists
  • Nutritionist
  • Infrared cabin

They have loads of top players and table tennis coaches, including World and European champions, and offer...

  • Training schedules
  • Training courses for clubs and athletes
  • Preparation classes for Pro Tour Tournaments
  • European training sessions for men, women and youngsters
  • ITTF training classes for developing countries
  • ITTF and ETTU training classes for members of the national team
  • ITTF and ETTU workshops ("Coach the coaches")
  • ITTF and ETTU training classes for players and tutors
  • Workshops for referees and journalists
  • IOC courses in connection with development plans
  • IOC courses in connection with the youth olympics ITTF/ETTU

^ Top of page ^


Other tasks

After you've decided to start a table tennis club, and you've decided on your table layout, there'll also be a whole range of other tasks that you'll need to organise, depending on the size of your club.

These could include....

  • Recruiting members
  • Arranging / organising finances
  • Determining the type and size of the club
  • Determining the number of people required
  • Providing all the necessary equipment
  • Deciding how often the club will be open
  • Deciding whether an organiser needs to be present whenever the club is open
  • Ensuring that the venue and equipment is secure and not liable to damage or theft
  • Deciding what additional facilities need to be provided - such as changing facilities, toilet facilities, refreshment facilities, seating
  • Setting up a web site
  • Arranging promotion and publicity activities
  • Maintaining records and accounts
  • Writing rules and policies
  • Writing a Constitution
  • Determining / electing Officials
  • Setting up committees
  • Employing staff
  • Arranging Insurance
  • Affiliating to other organisations
  • and more...

For small clubs, it's usually preferable if one or two people take control and organise everything. But for larger clubs, or as soon as a small club begins to expand, additional people will be required to run the club successfully.

But remember, the idea is to HAVE FUN, so don't let a lack of space stop you from playing. Just adapt to what's available.
